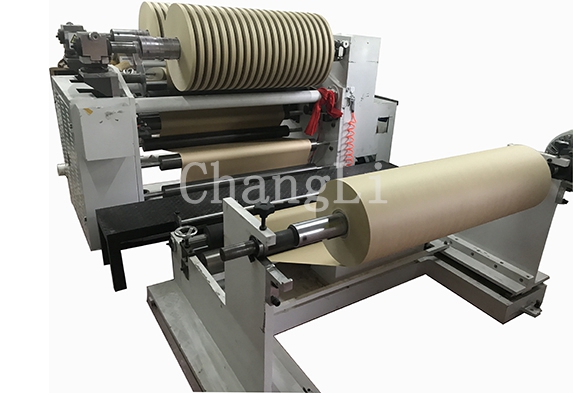

CLFQ-C型表面卷取復卷分切機
發布日期:[2018-08-17] 點擊率:技術參數Parameters:
機型 | 800 | 1000 | 1200 |
卷材寬度MAX.Parent Web Width | 750mm | 950mm | 1150mm |
放卷直徑Max.parent Web Diameter | Φ800mm | Φ800mm | Φ800mm |
收卷直徑Max.Rewinding Diameter | Φ600mm | Φ600mm | Φ600mm |
速度 | 0-200m/min | 0-200m/min | 0-200m/min |
總功率 | 5.5KW | 5.5KW | 7.5KW |
重量 | 2200kg | 2400kg | 2600kg |
外形尺寸 | 2200×2200×1300 | 2200×2400×1300 | 2200×2600×1300 |
分切寬度 | 圓刀Round Blade :3mm | 直刀Razor Blade :3mm |
用途:
表面卷取復卷分切機適用于鋁箔、紙張、絕緣材料、燙金膜、塑料薄膜(BOPP、PET、PE、PVC、PP、PS)等窄幅復卷分條
特點:
1、該機采用卷取及表面接觸并收卷方式
2、配有光電自動糾編裝置、張力磁粉制動器、離合器裝置
3、配有自動計米、自動停機裝置
4、主機變頻調速
5、上料方式:液壓上料、氣缸上料、無軸錐頂上料方式可選購
Uses:
Surface coiling and rewinding slitting machine is suitable for narrow-width rewinding slitting such as aluminum foil, paper, insulating material, bronzing film, plastic film (BOPP, PET, PE, PVC, PP, PS).
Features:
1. The machine adopts winding and surface contact and winding method.
2, equipped with photoelectric automatic correction device, tension magnetic powder brake, clutch device
3, equipped with automatic metering, automatic shutdown device
4, the host frequency control
5, feeding method: hydraulic feeding, cylinder feeding, no shaft cone top feeding method can be purchased
